Á¦¸ñ:TrueAV ¹Ì´Ï HDMI 1:2ºÐ¹è±â DVI,HDMI ºÐ¹è±â/¼¿·ºÅÍ>HDMIºÐ¹è±â [ÃÊ¹Ì´Ï Å¸ÀÔÀÇ 1:2 HDMI ºÐ¹è±â (16mmW x 86mmH x44mmD)]TrueAV ¹Ì´Ï HDMI 1:2ºÐ¹è±â|¼¿·ºÅÍ,ºÐ¹è±â,KVM>DVI,HDMI ºÐ¹è±â/¼¿·ºÅÍ>HDMIºÐ¹è±â>
°ü·Ã¾î:TrueAV,¹Ì´Ï,HDMI,1:2ºÐ¹è±â,DVI,HDMI,ºÐ¹è±â/¼¿·ºÅÍ>HDMIºÐ¹è±â,[Ãʹ̴Ï,ŸÀÔÀÇ,1:2,HDMI,ºÐ¹è±â,(16mmW,x,86mmH,x44mmD)]TrueAV,¹Ì´Ï,HDMI,1:2ºÐ¹è±â

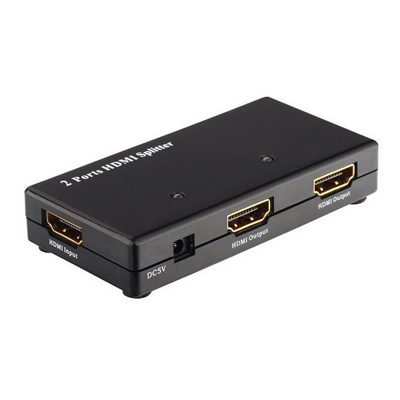

¼³¸í:Two outputs HDMI splitter- It distributes the HDMI input into tow identical outputs.- These tow outputs are synchronized.- TA20100M has the ability of buffering and amplifying- Series connection of TA20100M achieves long distance transmission of HDMI signal of more than 15 meters-When two or more TA20100M are cascaded they can be used to create a larger distribution-TA20100M offers solutions for HDTV retail and show site-HDTV, STB, DVD and Projector factory, noise-space and security concerns, data center control-information distribution, conference room presentation-school and corporate training environments. FEATURES-Easy to Use: Install in seconds, no need for setting-Distribution: 2 identical HDMI outputs-Cascaded: Large distribution achieved by cascading TA20100M-HDCP compliant. CONNECT AND OPERATE -Connect the HDMI input source into TA20100M. (Input cables are optional)-please refer to connection diagram section.-Insert the DC side of 5v power supply into TA20100M and then connect the -AC side of the power supply into the wall outlet. -Turn on the power. SPECIFICATIONS Operating temperature range¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦0 to +70¡É  Operating humidity range¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦5 to 90 % RH (no condensation)Video Amplifier Bandwidth¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦1.65Gbps /165MHzInput Video Signal¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦0.5-1.0 volts p-pInput DDC Signal¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦5 volts p-p (TTL)Maximum Single Link Range¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦1920 x 1200, 1080PVideo format supported:VGA :¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦640x480,800x600,1024x768,1920x1200DTV/HDTV :¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦480i/576i/480p/576p/720p/1080i/1080POutput Video¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦HDMI1.2+HDCP1.0/1.1Power Consumption ¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦5 Watts (max.)Power Supply¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦5VDCDimensions:¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦16mmW x 86mmH x44mmD Net Weight:¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦¡¦0.043KGs PACKAGE CONTENTS-Main unit. P/N_TA20100M-5V DC Power Supply.-User¡¯s Manual.
